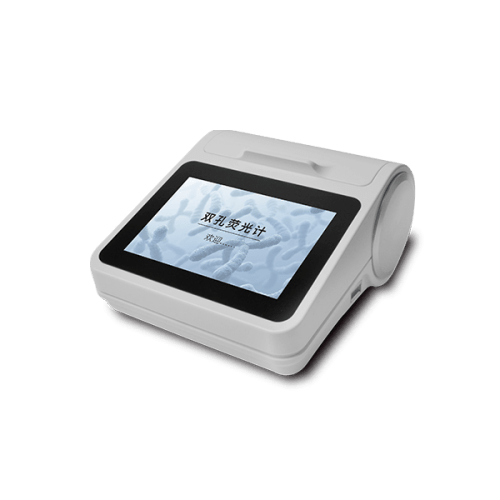

Model: FL-200 Product Description:
Fluorescent Immunoassay technology has the advantages of strong specificity, high sensitivity, and good practicability, so it is used to measure bioactive compounds with very low content, such as proteins (enzymes, receptors, antibodies), nucleic acids, hormones (steroids, Thyroid hormones, phthalein), drugs, and microorganisms. FL-200 dual-hole fluorometer is based on fluorescence Immunoassay technology.
Features
- Adopting a 5-inch touch high-definition screen, with an exquisite display screen and more user-friendly operation.
- it can quickly and accurately read within 2.5 seconds and can be used to quantify DNA， RNA, and proteins.
- The minimum detection limit can reach 0.1pg/uL (dsDNA).
- Two fluorescence channels can be used to measure two different types of fluorescence separately or simultaneously
- A response range of 5.5 orders of magnitude
- it is suitable for nucleic acid or protein samples that are difficult to measure with ordinary photometers and can be used in precision experiments such as qPCR, PCR cloning, transfection, and next-generation sequencing.7.Adapt to various brands of fluorometer kits
Parameters
| Model | FL-200 |
| Light source | Monochrome LED |
| Excitation filter | Blue light:460 ±20nm Red light:625 ±20nm |
| Emission filter | Blue light:525-570nm (45nm) Red light:670-725nm (55nm) |
| Detector | Photodiode |
| FluX | two |
| Sample tube type | 0.5mL PCR tube |
| Linearity | R²≥zero point nine nine five |
| Repeatability | ≤1.5% |
| Stability | ≤1.5% |
| Sensitivity(lower detection limit) | <0.1pg/uL(dsDNA HS) |
| Detection time | ≤5 seconds |
| Data storage capacity | 10000 programs |
| Input power | AC 100-240V,50/60Hz DC 9V1.5A |
| External interface | USB(TypeA)x2,USB(TypeB),LAN |
| Dimensions (Wx DxH) | 194mmx155mmx73mm |
| Weight | 0.4kg |
