介紹
The HiPure Minipreps system provides a fast, simple, and cost-effective 質粒DNA miniprep method for routine molecular biology laboratory applications. HiPure Miniprep Kits use silica membrane technology to eliminate the cumbersome steps associated with loose resins or slurries. Plasmid DNA purified with Mini Kits is immediately ready for use. Phenol extraction and ethanol precipitation are not required, and high quality plasmid DNA is eluted in a small volume of Tris buffer or water.
細節
規格
特徵 | 規格 |
主要功能 | Isolation up to 30μg endotoxin-free plasmid DNA from 1-5ml bacterial culture using 96-well bind plate |
應用領域 | Cell transfection, animal injection, ETC. |
純化方法 | 96 孔板 |
淨化技術 | 二氧化矽技術 |
工藝方法 | 手動的 (離心或真空) |
樣品類型 | Conventional plasmid, plasmid less than 30KB |
樣品量 | 1-5ml(x96) |
屈服 | 30微克 |
洗脫體積 | ≥75μl |
每次運行時間 | ≤60分鐘 |
每根柱的載液量 | 800微升 |
柱結合率 | 70微克 |
原則
The HiPure Plasmid procedure is based on alkaline lysis of bacterial cells followed by adsorption of DNA onto silica in the presence of high salt. The unique silica membrane used in the kit completely replaces glass or silica slurries for plasmid DNA minipreps. The procedure consists of 3 basic steps: Preparation and clearing of a bacterial lysate by alkaline method,then transfer the supernatant to column to bind DNA. 洗滌蛋白質及其他雜質後, nucleic acid was finally eluted with low-salt buffer (10毫米三羥甲基氨基甲烷, pH9.0, 0.5乙二胺四乙酸).
優點
- 高純度 – purified plasmid can be directly used in sequencing, enzyme digestion and 聚合酶鍊式反應, ETC.
- 快速地 – silica gel column purification is much faster than ion exchange
- Ultra low endotoxin – content of endotoxin is less than 0.05 EU/μg, which can be directly used for cell transfection and animal injection, ETC.

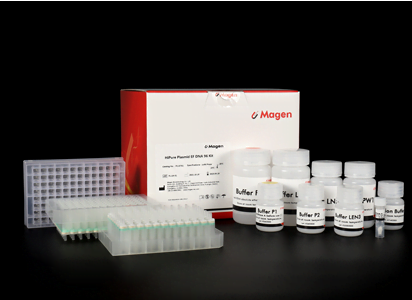

套件內容
內容 | P115701 | P115702 | P115703 |
淨化時間 | 1 X 96 準備工作 | 4 X 96 準備工作 | 20 X 96 準備工作 |
核糖核酸酶A | 10 毫克 | 20 毫克 | 100 毫克 |
Buffer P1 | 30 毫升 | 120 毫升 | 550 毫升 |
Buffer P2 | 30 毫升 | 120 毫升 | 550 毫升 |
Buffer LEN3 | 15 毫升 | 60 毫升 | 300 毫升 |
Buffer LN4 | 80 毫升 | 270 毫升 | 2 X 700 毫升 |
Buffer LN5 | 40 毫升 | 220 毫升 | 1100 毫升 |
Buffer PW1 | 40 毫升 | 220 毫升 | 1100 毫升 |
Buffer PW2 | 25 毫升 | 100 毫升 | 2 X 200 毫升 |
洗脫緩衝液 | 30 毫升 | 60 毫升 | 250 毫升 |
Lysate Clear Plate | 1 | 4 | 20 |
HiPure DNA Plate | 1 | 4 | 20 |
1.6ml Collection Plate | 2 | 8 | 40 |
0.5ml Collection Plate | 1 | 4 | 20 |
儲存和穩定性
The kit components can be stored dry at room temperature (15-25℃) 並且至少穩定 18 在這些條件下幾個月. 如果緩衝液中形成任何沉澱物, 37℃溫熱溶解. After addition of RNase A,Buffer P1 is stable for 6 months when stored at 2-8°C.
Purchase Guide
姓名 | CAT NO | 樣品量 | Column type | 洗脫體積 | 屈服 | 每次運行時間 | Centrifuge requirements |
HiPure Plasmid EF Mini Kit | P1154 | 10-15毫升 | 1.5ml column | ≥75μl | 10–70µg/15ml | ≤40分鐘 | small centrifuge |
HiPure Plasmid EF 96 成套工具 | P1157 | 1-5毫升 | 96 孔板 | ≥75μl | 30µg/1ml | ≤60分鐘 | 96 well plate centrifuge |
HiPure Plasmid EF Midi Kit | P1231 | 30-50毫升 | 15ml column | ≥0.4ml | 10-500μg/50ml | ≤60分鐘 | 15ml centrifuge |
HiPure Plasmid EF Maxi Kit | P1156 | 100-200毫升 | 50ml column | ≥0.8ml | 100–1500µg/200ml | ≤60分鐘 | 50ml centrifuge |
HiPure Plasmid EF Mega Kit | P1116 | 500毫升 | 50ml column | ≥0.8ml | 10mg/500ml | ≤70 minutes | 50ml centrifuge |
